Kubernetes Part 1: Ingress & FastAPI Model Deployment
Table of contents
- Kubernetes Deployment with Ingress
- Step 1: Docker Compose (Local Test)
- Model Server
- Web Server
- Step 2: Start Minikube (Local Kubernetes)
- Step 3: Explore Cluster State
- Step 4: Use Minikube’s Docker Daemon
- Step 5: Build Custom Images in Minikube
- Step 6: Switch Back to Local Docker
- Step 7: Apply Kubernetes Manifests
- Step 8: Expose with Ingress
- Step 9: Check Namespaces
Kubernetes Deployment with Ingress
This project demonstrates how to deploy a FastAPI-based model server and a web server backed by a Redis cache on Kubernetes (K8S). We use Docker to containerize services, Minikube as a local Kubernetes cluster, and Ingress to expose the application to the outside world.
Think of it as building a small production-like environment:
- Model Server → Runs an ONNX model for image classification.
- Web Server → Handles requests and communicates with the model server + Redis.
- Redis → Provides caching so duplicate requests don’t waste compute.
- Kubernetes → Orchestrates the services.
- Ingress → Provides access through a hostname.
Key Concepts
- Pod: The smallest deployable unit in Kubernetes that runs containers.
- Deployment: Ensures a defined number of pods are always running.
- Service: Provides networking between pods and stable endpoints.

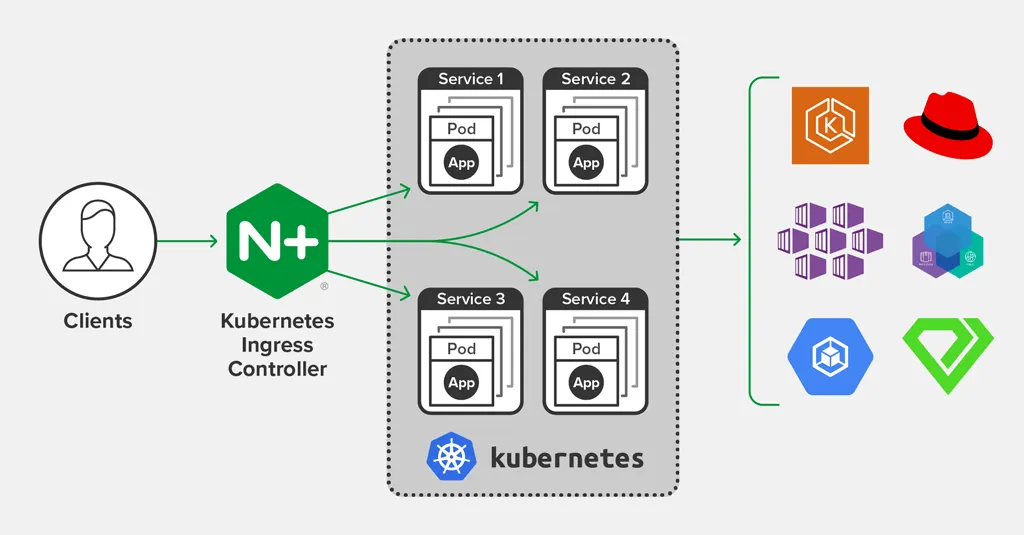

- Ingress: Exposes HTTP/HTTPS routes to internal services.
- Minikube: Local tool for running Kubernetes clusters.
- Redis: An in-memory database used here for caching.
- FastAPI: A Python framework for building APIs.
Step 1: Docker Compose (Local Test)
Before Kubernetes, let’s test our services using Docker Compose.
👉 Let’s Build the images:
Model Server
model-server/server.py
import urllib
import io
import os
import zlib
import json
import socket
import logging
import requests
import redis.asyncio as redis
import torch
import onnxruntime as ort
import numpy as np
from PIL import Image
from fastapi import FastAPI, File, Depends
from fastapi.middleware.cors import CORSMiddleware
from fastapi.responses import Response
from typing import Dict, Annotated
# Configure logging
logging.basicConfig(
level=logging.INFO, format="%(asctime)s - ModelServer - %(levelname)s - %(message)s"
)
logger = logging.getLogger(__name__)
app = FastAPI(title="Mamba Model Server")
# CORS middleware
app.add_middleware(
CORSMiddleware,
allow_origins=["*"],
allow_credentials=True,
allow_methods=["*"],
allow_headers=["*"],
)
# Update environment variables
MODEL_PATH = os.environ.get("MODEL_PATH", "resnet50_imagenet_1k_model.onnx")
LABELS_PATH = os.environ.get("LABELS_PATH", "labels.txt")
REDIS_HOST = os.environ.get("REDIS_HOST", "localhost")
REDIS_PORT = os.environ.get("REDIS_PORT", "6379")
REDIS_PASSWORD = os.environ.get("REDIS_PASSWORD", "")
HOSTNAME = socket.gethostname()
@app.on_event("startup")
async def initialize():
global model, device, categories, redis_pool, onnx_session
logger.info(f"Initializing model server on host {HOSTNAME}")
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
logger.info(f"Using device: {device}")
logger.info(f"Loading ONNX model: {MODEL_PATH}")
onnx_session = ort.InferenceSession(MODEL_PATH)
logger.info("ONNX model loaded successfully")
# Load ImageNet labels
logger.info("Loading local label file")
with open(LABELS_PATH, "r") as f:
categories = [line.strip() for line in f.readlines()]
logger.info(f"Loaded {len(categories)} categories")
# Redis setup
logger.info(f"Creating Redis connection pool: host={REDIS_HOST}, port={REDIS_PORT}")
redis_pool = redis.ConnectionPool(
host=REDIS_HOST,
port=REDIS_PORT,
password=REDIS_PASSWORD,
db=0,
decode_responses=True,
)
logger.info("Model server initialization complete")
@app.on_event("shutdown")
async def shutdown():
"""Cleanup connection pool on shutdown"""
logger.info("Shutting down model server")
await redis_pool.aclose()
logger.info("Cleanup complete")
def get_redis():
return redis.Redis(connection_pool=redis_pool)
def predict(inp_img: Image) -> Dict[str, float]:
logger.debug("Starting prediction")
# Convert to RGB and resize to expected size (e.g., 224x224 for ResNet50)
img = inp_img.convert("RGB").resize((224, 224))
img_array = np.array(img).astype(np.float32) / 255.0
# Normalize (ImageNet stats)
mean = np.array([0.485, 0.456, 0.406], dtype=np.float32)
std = np.array([0.229, 0.224, 0.225], dtype=np.float32)
img_array = (img_array - mean) / std
img_array = np.transpose(img_array, (2, 0, 1)) # HWC -> CHW
img_tensor = np.expand_dims(img_array, axis=0).astype(np.float32)
# Run ONNX inference
logger.debug("Running ONNX inference")
ort_inputs = {onnx_session.get_inputs()[0].name: img_tensor}
ort_outs = onnx_session.run(None, ort_inputs)
# Convert to torch tensor and apply softmax
probabilities = torch.nn.functional.softmax(torch.tensor(ort_outs[0][0]), dim=0)
# Get top predictions
top_prob, top_catid = torch.topk(probabilities, 5)
confidences = {
categories[idx.item()]: float(prob)
for prob, idx in zip(top_prob, top_catid)
}
logger.debug(f"Prediction complete. Top class: {list(confidences.keys())[0]}")
return confidences
async def write_to_cache(file: bytes, result: Dict[str, float]) -> None:
cache = get_redis()
hash = str(zlib.adler32(file))
logger.debug(f"Writing prediction to cache with hash: {hash}")
await cache.set(hash, json.dumps(result))
logger.debug("Cache write complete")

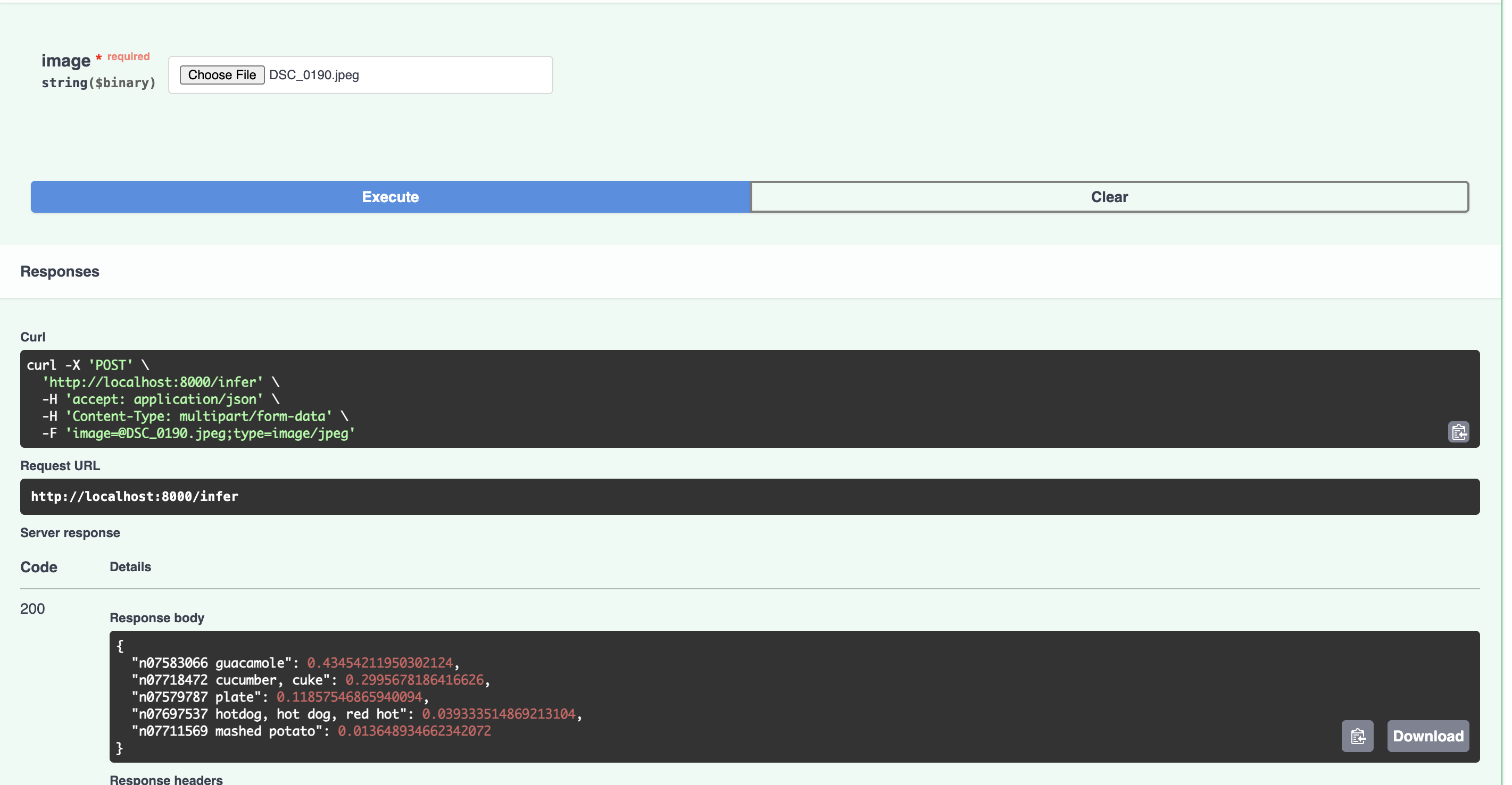

@app.post("/infer")
async def infer(image: Annotated[bytes, File()]):
logger.info("Received inference request")
img: Image.Image = Image.open(io.BytesIO(image))
logger.debug("Running prediction")
predictions = predict(img)
logger.debug("Writing results to cache")
await write_to_cache(image, predictions)
logger.info("Inference complete")
return predictions
@app.get("/health")
async def health_check():
try:
redis_client = get_redis()
redis_connected = await redis_client.ping()
except Exception as e:
logger.error(f"Redis health check failed: {str(e)}")
redis_connected = False
return {
"status": "healthy",
"hostname": HOSTNAME,
"model": MODEL_PATH,
"device": str(device) if "device" in globals() else None,
"redis": {
"host": REDIS_HOST,
"port": REDIS_PORT,
"connected": redis_connected,
},
}
if __name__ == "__main__":
import uvicorn
uvicorn.run(app, host="0.0.0.0", port=8000)
model-server/requirements.txt
fastapi[all]==0.115.6
redis==5.2.1
requests
onnxruntime
uvicorn
pillow
Dockerfile
FROM python:3.12-slim
WORKDIR /opt/src
# Copy requirements.txt
COPY requirements.txt .
# Install specific PyTorch CPU version and torchvision
RUN pip install --no-cache-dir torch==2.4.1 torchvision==0.19.1 \
-f https://download.pytorch.org/whl/cpu/torch_stable.html
# Install Python packages
RUN pip install --no-cache-dir -r requirements.txt \
&& rm -rf /root/.cache/pip
# Copy the rest of the code and assets
COPY . .
# Expose port
EXPOSE 80
# Run FastAPI app using uvicorn
CMD ["uvicorn", "server:app", "--host", "0.0.0.0", "--port", "80"]
Web Server
web-server/server.py
import os
import zlib
import json
import logging
import socket
import redis.asyncio as redis
import httpx
from fastapi import FastAPI, File, Depends, HTTPException
from fastapi.middleware.cors import CORSMiddleware
from fastapi.responses import Response
from typing import Annotated
# Configure logging
logging.basicConfig(
level=logging.INFO, format="%(asctime)s - WebServer - %(levelname)s - %(message)s"
)
logger = logging.getLogger(__name__)
app = FastAPI(title="Web Server")
app.add_middleware(
CORSMiddleware,
allow_origins=["*"],
allow_credentials=True,
allow_methods=["*"],
allow_headers=["*"],
)
# Add constants
HOSTNAME = socket.gethostname()
REDIS_HOST = os.environ.get("REDIS_HOST", "localhost")
REDIS_PORT = os.environ.get("REDIS_PORT", "6379")
REDIS_PASSWORD = os.environ.get("REDIS_PASSWORD", "")
MODEL_SERVER_URL = os.environ.get("MODEL_SERVER_URL", "<http://localhost:8000>")
@app.on_event("startup")
async def initialize():
global redis_pool
logger.info(f"Initializing web server on host {HOSTNAME}")
logger.info(f"Creating Redis connection pool: host={REDIS_HOST}, port={REDIS_PORT}")
redis_pool = redis.ConnectionPool(
host=REDIS_HOST,
port=REDIS_PORT,
password=REDIS_PASSWORD,
db=0,
decode_responses=True,
)
logger.info("Web server initialization complete")
@app.on_event("shutdown")
async def shutdown():
"""Cleanup connection pool on shutdown"""
logger.info("Shutting down web server")
await redis_pool.aclose()
logger.info("Cleanup complete")
def get_redis():
return redis.Redis(connection_pool=redis_pool)
async def check_cached(image: bytes):
hash = zlib.adler32(image)
cache = get_redis()
logger.debug(f"Checking cache for image hash: {hash}")
data = await cache.get(hash)
if data:
logger.info(f"Cache hit for image hash: {hash}")
else:
logger.info(f"Cache miss for image hash: {hash}")
return json.loads(data) if data else None
@app.post("/classify-imagenet")
async def classify_imagenet(image: Annotated[bytes, File()]):
logger.info("Received classification request")
infer_cache = await check_cached(image)
if infer_cache == None:
logger.info("Making request to model server")
async with httpx.AsyncClient() as client:
try:
url = f"{MODEL_SERVER_URL}/infer"
files = {"image": image}
logger.debug(f"Sending request to model server: {url}")
response = await client.post(url, files=files)
response.raise_for_status()
logger.info("Successfully received model prediction")
return response.json()
except Exception as e:
logger.error(f"Model server request failed: {str(e)}")
raise HTTPException(status_code=500, detail="Error from Model Endpoint")
return infer_cache
@app.get("/health")
async def health_check():
"""Health check endpoint for kubernetes readiness/liveness probes"""
try:
# Test Redis connection
redis_client = get_redis()
redis_connected = await redis_client.ping()
except Exception as e:
logger.error(f"Redis health check failed: {str(e)}")
redis_connected = False
try:
# Test Model Server connection
async with httpx.AsyncClient() as client:
response = await client.get(f"{MODEL_SERVER_URL}/health")
response.raise_for_status()
model_health = response.json()
model_connected = True
except Exception as e:
logger.error(f"Model server health check failed: {str(e)}")
model_connected = False
model_health = None
health_status = {
"status": "healthy" if (redis_connected and model_connected) else "degraded",
"hostname": HOSTNAME,
"redis": {"host": REDIS_HOST, "port": REDIS_PORT, "connected": redis_connected},
"model_server": {
"url": MODEL_SERVER_URL,
"connected": model_connected,
"health": model_health,
},
}
logger.info(f"Health check status: {health_status['status']}")
return health_status
web-server/requirements.txt
fastapi[all]==0.115.6
redis==5.2.1
httpx==0.28.1
requests
Dockerfile
FROM python:3.12
WORKDIR /opt/src
COPY requirements.txt .
RUN pip install -r requirements.txt \
&& rm -rf /root/.cache/pip
COPY server.py .
CMD ["uvicorn", "server:app", "--host", "0.0.0.0", "--port", "80"]
docker compose build
[+] Building 3.2s (26/26) FINISHED
=> [internal] load local bake definitions 0.0s
=> => reading from stdin 929B 0.0s
=> [web-server internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 251B 0.0s
=> [model-server internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 869B 0.0s
=> [web-server internal] load metadata for docker.io/library/python:3.12 0.9s
=> [model-server internal] load metadata for docker.io/library/python:3.12-slim 0.9s
=> [auth] library/python:pull token for registry-1.docker.io 0.0s
=> [web-server internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [model-server internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [web-server 1/5] FROM docker.io/library/python:3.12@sha256:645df645815f1403566b103b2a2bb07f6a01516bbb15078ed004e41d198ba194 0.0s
=> => resolve docker.io/library/python:3.12@sha256:645df645815f1403566b103b2a2bb07f6a01516bbb15078ed004e41d198ba194 0.0s
=> [web-server internal] load build context 0.0s
=> => transferring context: 66B 0.0s
=> [model-server 1/7] FROM docker.io/library/python:3.12-slim@sha256:9c1d9ed7593f2552a4ea47362ec0d2ddf5923458a53d0c8e30edf8b398c94a31 0.0s
=> => resolve docker.io/library/python:3.12-slim@sha256:9c1d9ed7593f2552a4ea47362ec0d2ddf5923458a53d0c8e30edf8b398c94a31 0.0s
=> [model-server internal] load build context 0.0s
=> => transferring context: 5.21kB 0.0s
=> CACHED [model-server 2/7] WORKDIR /opt/src 0.0s
=> CACHED [model-server 3/7] COPY requirements.txt . 0.0s
=> CACHED [model-server 4/7] RUN apt-get update && apt-get install -y --no-install-recommends build-essential libjpeg-de 0.0s
=> CACHED [model-server 5/7] RUN pip install --no-cache-dir torch==2.4.1 torchvision==0.19.1 -f https://download.pytorch.org/whl/cpu 0.0s
=> CACHED [model-server 6/7] RUN pip install --no-cache-dir -r requirements.txt && rm -rf /root/.cache/pip 0.0s
=> [model-server 7/7] COPY . . 0.2s
=> CACHED [web-server 2/5] WORKDIR /opt/src 0.0s
=> CACHED [web-server 3/5] COPY requirements.txt . 0.0s
=> CACHED [web-server 4/5] RUN pip install -r requirements.txt && rm -rf /root/.cache/pip 0.0s
=> CACHED [web-server 5/5] COPY server.py . 0.0s
=> [web-server] exporting to image 0.1s
=> => exporting layers 0.0s
=> => exporting manifest sha256:992486908d0a1db3a4f5a4225059957aedc45615f1b3d63310094a2d041e1133 0.0s
=> => exporting config sha256:dbe319f78d420f20b22a588e45ee9141f886157aa8fd534b7a77a13b141fe3ca 0.0s
=> => exporting attestation manifest sha256:b571b3ee7d41838c3eaf180926c89eb0fbe50aa45af6340abd090e0c64706214 0.0s
=> => exporting manifest list sha256:40014ab56c238b9f5178b76f5c638063921bdd111ff74509b59e05434a237aa2 0.0s
=> => naming to docker.io/library/s14-k8s-web-server:latest 0.0s
=> [web-server] resolving provenance for metadata file 0.0s
=> [model-server] exporting to image 2.0s
=> => exporting layers 2.0s
=> => exporting manifest sha256:ea0c59eaf737cc473cb7ab010f1eb521d2c37536ddfefdcb66873a726271b4a0 0.0s
=> => exporting config sha256:90101bb0dd957d16460dbbc77ba61db5d4cde415ba78f9b6da01a88825f76c3e 0.0s
=> => exporting attestation manifest sha256:a4e3f1df4ea7809547870e963812dfa858ecff6f53a7501aae265653a32999af 0.0s
=> => exporting manifest list sha256:5054c2d8d304c1ed7fca87e2bf0ae91d2d2db0718dea4f717c97816147b492b7 0.0s
=> => naming to docker.io/library/s14-k8s-model-server:latest 0.0s
=> [model-server] resolving provenance for metadata file 0.0s
[+] Building 2/2
✔ model-server Built 0.0s
✔ web-server Built
This builds container images for the model server and web server.
✅ Output shows images being built successfully.
👉 Start the containers:
docker compose up
[+] Running 8/8
✔ redis Pulled 2.0s
✔ 2493b15fc5cc Pull complete 0.2s
✔ 9d28ed3f68f2 Pull complete 0.8s
✔ ad0336d6fb70 Pull complete 0.3s
✔ 4f4fb700ef54 Pull complete 0.3s
✔ 731ddbd3b0ef Pull complete 0.3s
✔ 266b5a3707a6 Pull complete 0.3s
✔ 059ac13d98f2 Pull complete 0.4s
[+] Running 4/4
✔ Network s14-k8s_default Created 0.0s
✔ Container s14-k8s-redis-1 Created 0.1s
✔ Container s14-k8s-model-server-1 Created 28.2s
✔ Container s14-k8s-web-server-1 Created 0.5s
Attaching to model-server-1, redis-1, web-server-1
redis-1 | 1:C 06 Aug 2025 01:14:38.229 * oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
redis-1 | 1:C 06 Aug 2025 01:14:38.229 * Redis version=7.4.5, bits=64, commit=00000000, modified=0, pid=1, just started
redis-1 | 1:C 06 Aug 2025 01:14:38.229 * Configuration loaded
redis-1 | 1:M 06 Aug 2025 01:14:38.229 * monotonic clock: POSIX clock_gettime
redis-1 | 1:M 06 Aug 2025 01:14:38.230 * Running mode=standalone, port=6379.
redis-1 | 1:M 06 Aug 2025 01:14:38.230 * Server initialized
redis-1 | 1:M 06 Aug 2025 01:14:38.231 * Ready to accept connections tcp
web-server-1 | INFO: Started server process [1]
web-server-1 | INFO: Waiting for application startup.
web-server-1 | 2025-08-06 01:14:44,785 - WebServer - INFO - Initializing web server on host dc3e47a3bf69
web-server-1 | 2025-08-06 01:14:44,785 - WebServer - INFO - Creating Redis connection pool: host=redis, port=6379
web-server-1 | 2025-08-06 01:14:44,785 - WebServer - INFO - Web server initialization complete
web-server-1 | INFO: Application startup complete.
web-server-1 | INFO: Uvicorn running on http://0.0.0.0:80 (Press CTRL+C to quit)
model-server-1 | INFO: Started server process [1]
model-server-1 | INFO: Waiting for application startup.
model-server-1 | 2025-08-06 01:14:46,886 - ModelServer - INFO - Initializing model server on host c96204071edf
model-server-1 | 2025-08-06 01:14:46,888 - ModelServer - INFO - Using device: cpu
model-server-1 | 2025-08-06 01:14:46,888 - ModelServer - INFO - Loading ONNX model: resnet50_imagenet_1k_model.onnx
model-server-1 | 2025-08-06 01:14:47,159 - ModelServer - INFO - ONNX model loaded successfully
model-server-1 | 2025-08-06 01:14:47,159 - ModelServer - INFO - Loading local label file
model-server-1 | 2025-08-06 01:14:47,159 - ModelServer - INFO - Loaded 1000 categories
model-server-1 | 2025-08-06 01:14:47,159 - ModelServer - INFO - Creating Redis connection pool: host=redis, port=6379
model-server-1 | 2025-08-06 01:14:47,159 - ModelServer - INFO - Model server initialization complete
model-server-1 | INFO: Application startup complete.
model-server-1 | INFO: Uvicorn running on http://0.0.0.0:80 (Press CTRL+C to quit)
model-server-1 | INFO: 192.168.65.1:34390 - "GET /health HTTP/1.1" 200 OK
This runs Redis, Model Server, and Web Server containers together.
✅ Output: Redis starts, model server loads ONNX model, web server initializes.
Step 2: Start Minikube (Local Kubernetes)
👉 Start cluster:
Initializes a local Kubernetes cluster using Docker as the virtualization driver. Minikube creates a virtual environment for testing Kubernetes deployments locally.
minikube start --driver=docker
😄 minikube v1.36.0 on Darwin 14.5 (arm64)
✨ Using the docker driver based on existing profile
👍 Starting "minikube" primary control-plane node in "minikube" cluster
🚜 Pulling base image v0.0.47 ...
🤷 docker "minikube" container is missing, will recreate.
🔥 Creating docker container (CPUs=2, Memory=4000MB) ...
🐳 Preparing Kubernetes v1.33.1 on Docker 28.1.1 ...
▪ Generating certificates and keys ...
▪ Booting up control plane ...
▪ Configuring RBAC rules ...
🔗 Configuring bridge CNI (Container Networking Interface) ...
🔎 Verifying Kubernetes components...
💡 After the addon is enabled, please run "minikube tunnel" and your ingress resources would be available at "127.0.0.1"
▪ Using image gcr.io/k8s-minikube/storage-provisioner:v5
▪ Using image docker.io/kubernetesui/dashboard:v2.7.0
▪ Using image registry.k8s.io/metrics-server/metrics-server:v0.7.2
▪ Using image registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.3
▪ Using image registry.k8s.io/ingress-nginx/controller:v1.12.2
▪ Using image docker.io/kubernetesui/metrics-scraper:v1.0.8
▪ Using image registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.3
🔎 Verifying ingress addon...
💡 Some dashboard features require the metrics-server addon. To enable all features please run:
minikube addons enable metrics-server
🌟 Enabled addons: storage-provisioner, metrics-server, default-storageclass, dashboard, ingress
🏄 Done! kubectl is now configured to use "minikube" cluster and "default" namespace by default
This starts a Kubernetes cluster inside Docker with addons like ingress enabled.
👉 Check Minikube container:
Lists running Docker containers, showing the Minikube container that’s hosting the Kubernetes cluster.
docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
73f06b46c537 gcr.io/k8s-minikube/kicbase:v0.0.47 "/usr/local/bin/entr…" 2 minutes ago Up 2 minutes 127.0.0.1:50672->22/tcp, 127.0.0.1:50673->2376/tcp, 127.0.0.1:50675->5000/tcp, 127.0.0.1:50671->8443/tcp, 127.0.0.1:50674->32443/tcp minikube
Shows that Minikube itself is running as a container.
Step 3: Explore Cluster State
👉 Get all resources in default namespace:
Lists all resources in the default namespace. Initially shows only the Kubernetes API service.
kubectl get all
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 9m
👉 Get resources across all namespaces:
Lists all resources across all namespaces, showing system components like CoreDNS, etcd, and the Kubernetes dashboard.
kubectl get all -A
NAMESPACE NAME READY STATUS RESTARTS AGE
ingress-nginx pod/ingress-nginx-admission-create-5p68t 0/1 Completed 0 3m32s
ingress-nginx pod/ingress-nginx-admission-patch-x64lt 0/1 Completed 1 3m32s
ingress-nginx pod/ingress-nginx-controller-67c5cb88f-bwz7p 1/1 Running 0 3m31s
kube-system pod/coredns-674b8bbfcf-5m2qz 1/1 Running 0 3m31s
kube-system pod/coredns-674b8bbfcf-x6n9w 1/1 Running 0 3m31s
kube-system pod/etcd-minikube 1/1 Running 0 3m36s
kube-system pod/kube-apiserver-minikube 1/1 Running 0 3m36s
kube-system pod/kube-controller-manager-minikube 1/1 Running 0 3m36s
kube-system pod/kube-proxy-7pvrw 1/1 Running 0 3m32s
kube-system pod/kube-scheduler-minikube 1/1 Running 0 3m36s
kube-system pod/metrics-server-7fbb699795-qp99h 1/1 Running 0 3m31s
kube-system pod/storage-provisioner 1/1 Running 0 3m35s
kubernetes-dashboard pod/dashboard-metrics-scraper-5d59dccf9b-nnrsx 1/1 Running 0 3m31s
kubernetes-dashboard pod/kubernetes-dashboard-7779f9b69b-9km7f 1/1 Running 0 3m31s
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3m38s
ingress-nginx service/ingress-nginx-controller NodePort 10.102.131.187 <none> 80:31580/TCP,443:32676/TCP 3m35s
ingress-nginx service/ingress-nginx-controller-admission ClusterIP 10.99.45.1 <none> 443/TCP 3m35s
kube-system service/kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 3m36s
kube-system service/metrics-server ClusterIP 10.98.134.104 <none> 443/TCP 3m35s
kubernetes-dashboard service/dashboard-metrics-scraper ClusterIP 10.97.104.142 <none> 8000/TCP 3m35s
kubernetes-dashboard service/kubernetes-dashboard ClusterIP 10.109.202.231 <none> 80/TCP 3m35s
NAMESPACE NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
kube-system daemonset.apps/kube-proxy 1 1 1 1 1 kubernetes.io/os=linux 3m36s
NAMESPACE NAME READY UP-TO-DATE AVAILABLE AGE
ingress-nginx deployment.apps/ingress-nginx-controller 1/1 1 1 3m35s
kube-system deployment.apps/coredns 2/2 2 2 3m36s
kube-system deployment.apps/metrics-server 1/1 1 1 3m35s
kubernetes-dashboard deployment.apps/dashboard-metrics-scraper 1/1 1 1 3m35s
kubernetes-dashboard deployment.apps/kubernetes-dashboard 1/1 1 1 3m35s
NAMESPACE NAME DESIRED CURRENT READY AGE
ingress-nginx replicaset.apps/ingress-nginx-controller-67c5cb88f 1 1 1 3m32s
kube-system replicaset.apps/coredns-674b8bbfcf 2 2 2 3m32s
kube-system replicaset.apps/metrics-server-7fbb699795 1 1 1 3m32s
kubernetes-dashboard replicaset.apps/dashboard-metrics-scraper-5d59dccf9b 1 1 1 3m32s
kubernetes-dashboard replicaset.apps/kubernetes-dashboard-7779f9b69b 1 1 1 3m32s
NAMESPACE NAME STATUS COMPLETIONS DURATION AGE
ingress-nginx job.batch/ingress-nginx-admission-create Complete 1/1 8s 3m35s
ingress-nginx job.batch/ingress-nginx-admission-patch Complete 1/1 9s 3m35s
This shows system pods like CoreDNS, metrics-server, ingress controller, etc.
Step 4: Use Minikube’s Docker Daemon
👉 Point Docker CLI to Minikube:
Configures your terminal to use Minikube’s Docker daemon instead of your local one. This allows Kubernetes to access images you build locally without pushing to a registry.
eval $(minikube docker-env)
Now any docker build goes into Minikube’s environment.
👉 List available images:
Shows Docker images available in Minikube’s Docker environment, including system images for Kubernetes components.
docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
registry.k8s.io/kube-apiserver v1.33.1 9a2b7cf4f854 2 months ago 97.1MB
registry.k8s.io/kube-scheduler v1.33.1 014094c90caa 2 months ago 70.5MB
registry.k8s.io/kube-controller-manager v1.33.1 674996a72aa5 2 months ago 90.5MB
registry.k8s.io/kube-proxy v1.33.1 3e58848989f5 2 months ago 99.7MB
registry.k8s.io/ingress-nginx/controller <none> 84591f30b7f1 3 months ago 301MB
registry.k8s.io/ingress-nginx/kube-webhook-certgen <none> 43a738c76a31 3 months ago 65MB
registry.k8s.io/etcd 3.5.21-0 31747a36ce71 4 months ago 146MB
registry.k8s.io/coredns/coredns v1.12.0 f72407be9e08 8 months ago 68.4MB
registry.k8s.io/metrics-server/metrics-server <none> 5548a49bb60b 11 months ago 65.5MB
registry.k8s.io/pause 3.10 afb61768ce38 14 months ago 514kB
kubernetesui/dashboard <none> 20b332c9a70d 2 years ago 244MB
kubernetesui/metrics-scraper <none> a422e0e98235 3 years ago 42.3MB
gcr.io/k8s-minikube/storage-provisioner v5 ba04bb24b957 4 years ago 29MB
Verifies images inside Minikube’s Docker.
Step 5: Build Custom Images in Minikube
👉 Build the model server:
Builds the model-server Docker image specifically for the amd64 platform (for compatibility) and tags it as model-server.
docker build --platform linux/amd64 -t model-server model-server
[+] Building 142.7s (14/14) FINISHED docker:default
=> [internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 869B 0.0s
=> [internal] load metadata for docker.io/library/python:3.12-slim 1.2s
=> [auth] library/python:pull token for registry-1.docker.io 0.0s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [1/7] FROM docker.io/library/python:3.12-slim@sha256:9c1d9ed7593f2552a4ea47362ec0d2ddf5923458a53d0c8e30edf8b398c94a31 2.4s
=> => resolve docker.io/library/python:3.12-slim@sha256:9c1d9ed7593f2552a4ea47362ec0d2ddf5923458a53d0c8e30edf8b398c94a31 0.3s
=> => sha256:bc31e3bfcc822213057d459f03536b30705f8708b53e166bbe3c3a53d41d8ae5 5.57kB / 5.57kB 0.0s
=> => sha256:59e22667830bf04fb35e15ed9c70023e9d121719bb87f0db7f3159ee7c7e0b8d 28.23MB / 28.23MB 0.7s
=> => sha256:4c665aba06d1c52829be84ca62e1030e27b8a3aa0f922666cbe74d24234ff227 3.51MB / 3.51MB 0.6s
=> => sha256:e3586b415667d044c3e5c7c91023d29d7db667b73a8082068a1b7f36c1962c34 13.66MB / 13.66MB 0.8s
=> => sha256:9c1d9ed7593f2552a4ea47362ec0d2ddf5923458a53d0c8e30edf8b398c94a31 9.13kB / 9.13kB 0.0s
=> => sha256:c5247bc3787c809810386c289942bdf3b6e9437dc7436e1acfe7c822f446e3b5 1.75kB / 1.75kB 0.0s
=> => sha256:f5cc5422ebcbbf01f9cd227d36de9dd7e133e1fc6d852f3b0c65260ab58f99f3 250B / 250B 0.8s
=> => extracting sha256:59e22667830bf04fb35e15ed9c70023e9d121719bb87f0db7f3159ee7c7e0b8d 0.8s
=> => extracting sha256:4c665aba06d1c52829be84ca62e1030e27b8a3aa0f922666cbe74d24234ff227 0.1s
=> => extracting sha256:e3586b415667d044c3e5c7c91023d29d7db667b73a8082068a1b7f36c1962c34 0.4s
=> => extracting sha256:f5cc5422ebcbbf01f9cd227d36de9dd7e133e1fc6d852f3b0c65260ab58f99f3 0.0s
=> [internal] load build context 0.8s
=> => transferring context: 102.63MB 0.8s
=> [auth] library/python:pull token for registry-1.docker.io 0.0s
=> [2/7] WORKDIR /opt/src 0.3s
=> [3/7] COPY requirements.txt . 0.0s
=> [4/7] RUN apt-get update && apt-get install -y --no-install-recommends build-essential libjpeg-dev libpng-dev && rm -r 13.6s
=> [5/7] RUN pip install --no-cache-dir torch==2.4.1 torchvision==0.19.1 -f https://download.pytorch.org/whl/cpu/torch_stable.html 104.8s
=> [6/7] RUN pip install --no-cache-dir -r requirements.txt && rm -rf /root/.cache/pip 9.5s
=> [7/7] COPY . . 0.1s
=> exporting to image 10.8s
=> => exporting layers 10.8s
=> => writing image sha256:143c9762e8f8807cbdcc62fa4c1e1e1a536cf862a12ac093cf6a872c8d8c25ee 0.0s
=> => naming to docker.io/library/model-server 0.0s
👉 Build the web server:
Builds the web-server Docker image for the amd64 platform and tags it as web-server.
docker build --platform linux/amd64 -t web-server web-server
[+] Building 21.4s (10/10) FINISHED docker:default
=> [internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 251B 0.0s
=> [internal] load metadata for docker.io/library/python:3.12 0.8s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [1/5] FROM docker.io/library/python:3.12@sha256:645df645815f1403566b103b2a2bb07f6a01516bbb15078ed004e41d198ba194 10.4s
=> => resolve docker.io/library/python:3.12@sha256:645df645815f1403566b103b2a2bb07f6a01516bbb15078ed004e41d198ba194 0.0s
=> => sha256:b3d245705d9c006d10d35b888f58e42d57b803388d3e06d885a050520782daf7 6.46kB / 6.46kB 0.0s
=> => sha256:c2e76af9483f2d17a3e370639403df2c53a3da1480d533116a8694cd91f15d5a 24.02MB / 24.02MB 0.8s
=> => sha256:37f838b71c6b82c581b7543a313255b8c99c23cc9d96c1ad6f9f5f208c942553 64.40MB / 64.40MB 2.0s
=> => sha256:645df645815f1403566b103b2a2bb07f6a01516bbb15078ed004e41d198ba194 9.08kB / 9.08kB 0.0s
=> => sha256:6228f48a3d363d0d2e8a95f7b356857861a14550f86aa1456835b6a24b1a9a1f 2.33kB / 2.33kB 0.0s
=> => sha256:ebed137c7c18cb1906fb8314eabc10611ddf49a281f8c1b5eab987a7137f749f 48.49MB / 48.49MB 1.5s
=> => sha256:873a4c80287477653c01b20948fc34bb1bacf0f826bcc2ddc3bd2fe25b342d45 211.36MB / 211.36MB 5.2s
=> => extracting sha256:ebed137c7c18cb1906fb8314eabc10611ddf49a281f8c1b5eab987a7137f749f 1.5s
=> => sha256:ffd592b5cf92171a279d48e22387a596c940352327e0c1973972a38f41042b19 6.16MB / 6.16MB 2.0s
=> => sha256:34af509f605c821f54b5815829279b93b3832d6895c2b6e8ea2d0c19a1f25af2 25.64MB / 25.64MB 3.0s
=> => sha256:b7db6ad1f83721354c4011a0fe015c2a140851c5e722bc65fbdf0e9c38172546 249B / 249B 2.2s
=> => extracting sha256:c2e76af9483f2d17a3e370639403df2c53a3da1480d533116a8694cd91f15d5a 0.4s
=> => extracting sha256:37f838b71c6b82c581b7543a313255b8c99c23cc9d96c1ad6f9f5f208c942553 1.7s
=> => extracting sha256:873a4c80287477653c01b20948fc34bb1bacf0f826bcc2ddc3bd2fe25b342d45 4.1s
=> => extracting sha256:ffd592b5cf92171a279d48e22387a596c940352327e0c1973972a38f41042b19 0.2s
=> => extracting sha256:34af509f605c821f54b5815829279b93b3832d6895c2b6e8ea2d0c19a1f25af2 0.5s
=> => extracting sha256:b7db6ad1f83721354c4011a0fe015c2a140851c5e722bc65fbdf0e9c38172546 0.0s
=> [internal] load build context 0.0s
=> => transferring context: 4.45kB 0.0s
=> [2/5] WORKDIR /opt/src 0.1s
=> [3/5] COPY requirements.txt . 0.0s
=> [4/5] RUN pip install -r requirements.txt && rm -rf /root/.cache/pip 9.9s
=> [5/5] COPY server.py . 0.0s
=> exporting to image 0.2s
=> => exporting layers 0.2s
=> => writing image sha256:b859aed237498cefba8eedae7c68da72c430a1366aa76318722f77b11432a537 0.0s
=> => naming to docker.io/library/web-server 0.0s
Both images are now available directly inside Minikube.
Step 6: Switch Back to Local Docker
👉 Exit Minikube’s Docker daemon:
Resets your terminal to use your local Docker daemon again instead of Minikube’s.
eval $(minikube docker-env -u)
Restores Docker CLI to your local machine.
Step 7: Apply Kubernetes Manifests
We define Deployments and Services in YAML files.
model-server.deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: model-server
spec:
replicas: 1
selector:
matchLabels:
app: model-server
template:
metadata:
labels:
app: model-server
spec:
containers:
- name: model-server
image: model-server:latest
imagePullPolicy: Never
resources:
limits:
memory: "2Gi"
cpu: "1000m"
ports:
- containerPort: 80
env:
- name: REDIS_HOST
value: redis-db-service
- name: REDIS_PORT
value: "6379"
- name: REDIS_PASSWORD
value: <redis-password>
model-server.service.yaml
apiVersion: v1
kind: Service
metadata:
name: model-server-service
spec:
selector:
app: model-server
ports:
- port: 80
targetPort: 80
redis.deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis-db
spec:
replicas: 1
selector:
matchLabels:
app: redis
role: master
template:
metadata:
labels:
app: redis
role: master
spec:
volumes:
- name: redis-storage
persistentVolumeClaim:
claimName: redis-pvc
containers:
- name: redis-master
image: redis:7.4.1
resources:
limits:
cpu: 200m
memory: 200Mi
command:
- redis-server
args:
- --requirepass
- $(REDIS_PASSWORD)
ports:
- containerPort: 6379
volumeMounts:
- name: redis-storage
mountPath: /data
env:
- name: REDIS_PASSWORD
value: <redis-password>
redis.service.yaml
apiVersion: v1
kind: Service
metadata:
name: redis-db-service
labels:
app: redis
role: master
spec:
ports:
- port: 6379
targetPort: 6379
selector:
app: redis
role: master
web-server.deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: web-server
labels:
app: web-server
spec:
replicas: 1
selector:
matchLabels:
app: web-server
template:
metadata:
labels:
app: web-server
spec:
containers:
- name: web-server
image: web-server:latest
imagePullPolicy: Never
resources:
limits:
memory: "200Mi"
cpu: "500m"
ports:
- containerPort: 80
env:
- name: REDIS_HOST
value: redis-db-service
- name: REDIS_PORT
value: "6379"
- name: REDIS_PASSWORD
value: <redos-password>
- name: MODEL_SERVER_URL
value: "<http://model-server-service>"
web-server.service.yaml
apiVersion: v1
kind: Service
metadata:
name: web-server-service
spec:
selector:
app: web-server
ports:
- port: 80
targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: web-server-ingress
spec:
rules:
- host: fastapi.localhost
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: web-server-service
port:
number: 80
👉 Applying Kubernetes Manifests:
Creates all Kubernetes resources defined in YAML files in the current directory, including deployments, services, and ingress rules.
kubectl apply -f .
deployment.apps/model-server created
service/model-server-service created
deployment.apps/redis-db created
service/redis-db-service created
deployment.apps/web-server created
service/web-server-service created
ingress.networking.k8s.io/web-server-ingress created
This creates model-server, web-server, redis deployments, services, and ingress.
👉 Checking Deployed Resources:
Lists all resources in the default namespace after deployment, showing the pods, services, deployments, and replicasets that were created.
kubectl get all
NAME READY STATUS RESTARTS AGE
pod/model-server-678c7f478c-dv7sv 1/1 Running 0 48s
pod/redis-db-6864b584bb-p28nt 1/1 Running 0 48s
pod/web-server-5d9db84fbf-fmc2p 1/1 Running 0 48s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 15m
service/model-server-service ClusterIP 10.107.44.85 <none> 80/TCP 48s
service/redis-db-service ClusterIP 10.104.173.91 <none> 6379/TCP 48s
service/web-server-service ClusterIP 10.102.56.29 <none> 80/TCP 48s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/model-server 1/1 1 1 48s
deployment.apps/redis-db 1/1 1 1 48s
deployment.apps/web-server 1/1 1 1 48s
NAME DESIRED CURRENT READY AGE
replicaset.apps/model-server-678c7f478c 1 1 1 48s
replicaset.apps/redis-db-6864b584bb 1 1 1 48s
replicaset.apps/web-server-5d9db84fbf 1 1 1 48s
Shows pods, deployments, and services are up.
Step 8: Expose with Ingress
👉 Checking Ingress Resources:
Lists all Ingress resources, showing the hostname (fastapi.localhost) that will route external traffic to the web-server service.
kubectl get ing
NAME CLASS HOSTS ADDRESS PORTS AGE
web-server-ingress nginx fastapi.localhost 192.168.49.2 80 2m2s
Lists the ingress mapping (e.g., fastapi.localhost).
👉 Creating Network Tunnel for Local Access:
Creates a network tunnel that allows accessing services through their defined Ingress rules. This makes the application accessible at http://fastapi.localhost from your local machine.
minikube tunnel
✅ Tunnel successfully started
📌 NOTE: Please do not close this terminal as this process must stay alive for the tunnel to be accessible ...
❗ The service/ingress web-server-ingress requires privileged ports to be exposed: [80 443]
🔑 sudo permission will be asked for it.
🏃 Starting tunnel for service web-server-ingress.
⚠️ Keep this terminal open for tunnel to stay active.
👉 Access app in browser:
http://fastapi.localhost/health
{
"status": "healthy",
"hostname": "web-server-5d9db84fbf-fmc2p",
"redis": {
"host": "redis-db-service",
"port": "6379",
"connected": true
},
"model_server": {
"url": "http://model-server-service",
"connected": true,
"health": {
"status": "healthy",
"hostname": "model-server-678c7f478c-dv7sv",
"model": "resnet50_imagenet_1k_model.onnx",
"device": "cpu",
"redis": {
"host": "redis-db-service",
"port": "6379",
"connected": true
}
}
}
}
Returns JSON showing health status of web server, model server, and Redis.
Step 9: Check Namespaces
👉 Checking Kubernetes Namespaces:
Lists all namespaces in the Kubernetes cluster, showing system namespaces and any custom namespaces that have been created.
kubectl get namespaces
NAME STATUS AGE
default Active 112m
ingress-nginx Active 111m
kube-node-lease Active 112m
kube-public Active 112m
kube-system Active 112m
kubernetes-dashboard Active 111m
Shows all namespaces like default, kube-system, ingress-nginx, etc.
At the end of this workflow, you have successfully deployed a FastAPI application backed by a model server and Redis cache on Kubernetes. All services are running inside a Minikube cluster, exposed through an Ingress. Requests now flow from the browser to the Ingress, into the Web Server, then to the Model Server (with Redis providing caching along the way). This gives you a working, end-to-end, production-style setup entirely on your local machine.
Thank You for Reading!
